Description
General
Brand
- Gigabyte
Model
- Z590-AORUS-ULTRA
Microless SKU
- 75736
Date first available
- 05 April, 2021
Maximum Capacity
- 128 GB DDR4
Memory Slots
- 4 x 288-Pin
Power Connectors
- 1 x 24-Pin Mainboard
1 x 8-Pin ATX
Form Factor
- ATX
Details
- CPU
Chipset Intel Z590
CPU Socket LGA 1200

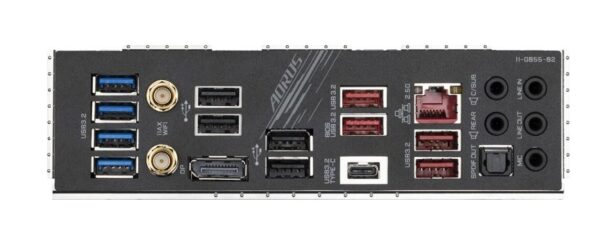

Back Panel I/O
USB 1 x USB 3.2 Gen 2×2 Type-C
4 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333, 5400 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Other
- Internal I/O
Expansion Slots 1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
USB 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way, Quad-GPU AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
6 x 4-Pin System
1 x Noise Sensor
2 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security TPM Module
LED Header 4 x RGB
Audio 1 x Speaker
Diagnostics Clear CMOS, Flash BIOS, Reset
Add-On 2 x Thunderbolt Card Header
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2
Audio
Audio Codec Realtek ALC4080 (7.1-Channel)
Wireless
Bluetooth 5.1
Wi-Fi Wi-Fi 6 (802.11ax) (MU-MIMO)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 9.6 x 12.0\” / 24.4 x 30.5 cm
Packaging Info
- Package Weight 5 lb
Box Dimensions (LxWxH) 13.5 x 11 x 3\”
