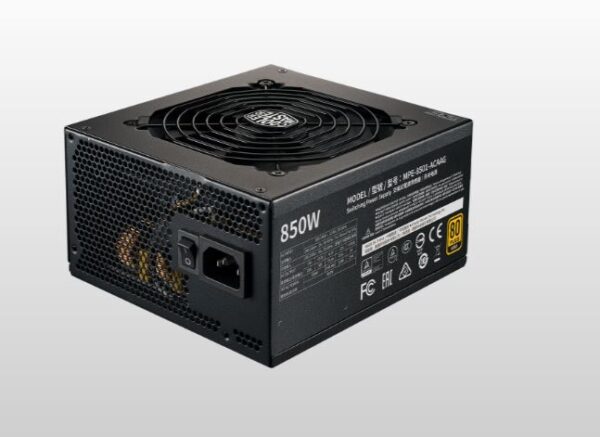

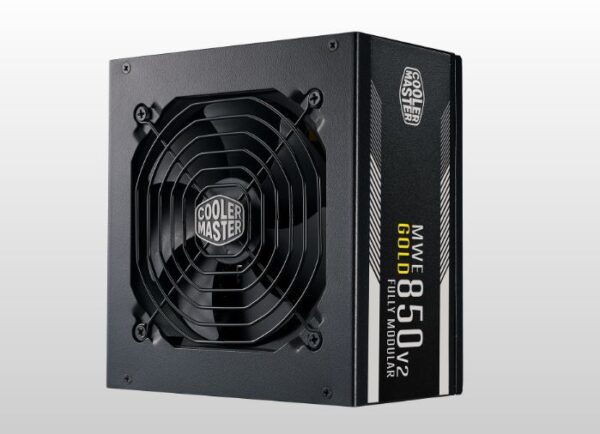

MWE GOLD 850 – V2 FULL MODULAR

FULL MODULAR 80 PLUS GOLD ATX POWER SUPPLY UNIT

80 Plus Gold Efficiency
2 EPS Connectors
120mm HDB Fan
High Temperature Resilience

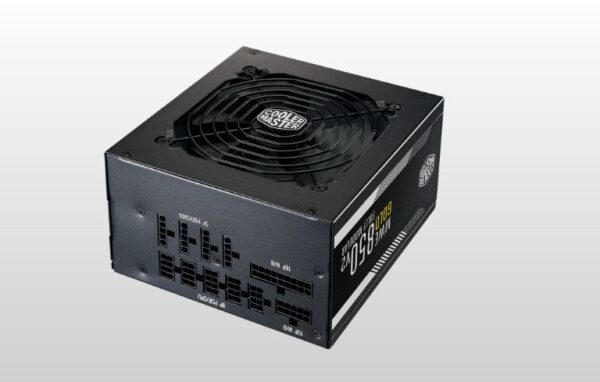

Full Modular Cabling
5 Year Warranty

MODEL                                              MPE-8501-AFAAG

ATX VERSION                                 ATX 12V

PFC                                                    Active PFC

INPUT VOLTAGE                            90-264V

INPUT CURRENT                           12-6A

INPUT FREQUENCY                     47-63Hz

DIMENSIONS (L X W X H)            160 x 150 x 86 mm

FAN SIZE                                          120mm

FAN BEARING                                 HDB

FAN SPEED                                     1500 RPM

NOISE LEVEL @ 20%                    0 dBA

NOISE LEVEL @ 50%                    17.8 dBA

NOISE LEVEL @ 100%                  25.9 dBA

EFFICIENCY                                    90% @ Typical Load

80 PLUS RATING                            80 PLUS Gold

ERP 2014 LOT 3                              Yes

OPERATING TEMPERATURE     0-50°C

POWER GOOD SIGNAL                100 – 150 ms

HOLD UP TIME                                >16ms at 100% Load

MTBF                                                 >100,000 Hours

PROTECTIONS                               OVP, OPP, OTP, SCP, OCP, UVP

REGULATORY                                TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI

ATX 24-PIN CONNECTORS         1

EPS 4+4 PIN CONNECTORS       1

EPS 8 PIN CONNECTOR              1

SATA CONNECTORS                    12

PERIPHERAL 4-PIN CONNECTORS      4

PCI-E 6+2 PIN CONNECTORS                4

SERIES                                             MWE Gold Series

80 PLUS                                            Gold

MODULAR                                        Full Modular
